scroll down for chains files accessories


Fits the following chainsaws:

STIHL

024, MS240
026, MS260, MS261
027, MS270, MS271
028, MS280, MS281, MS291

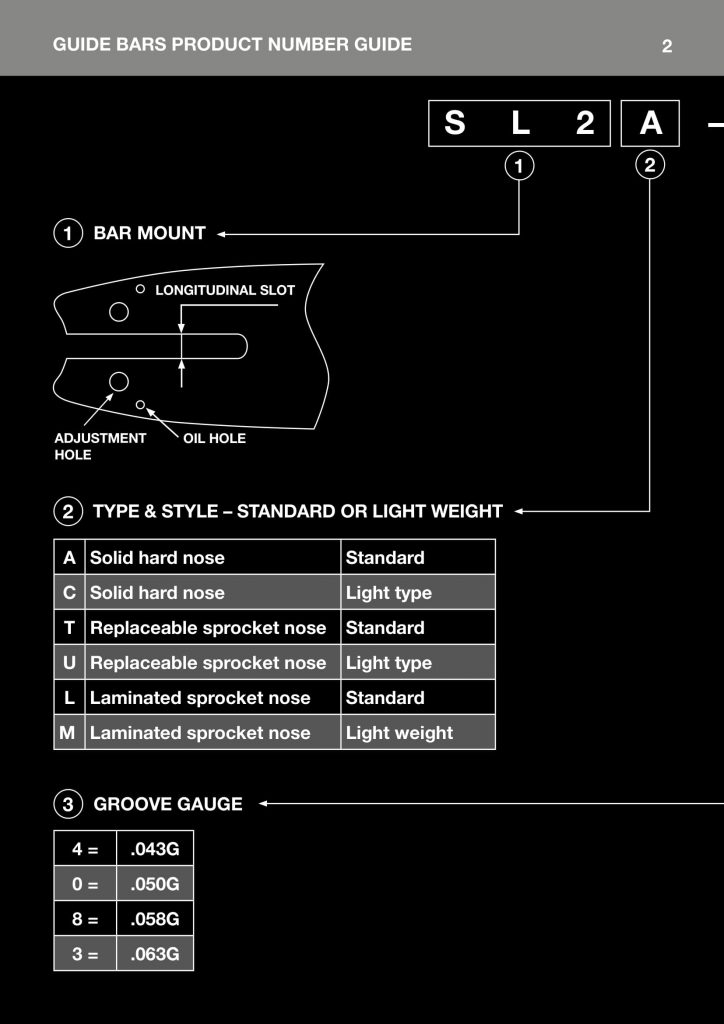

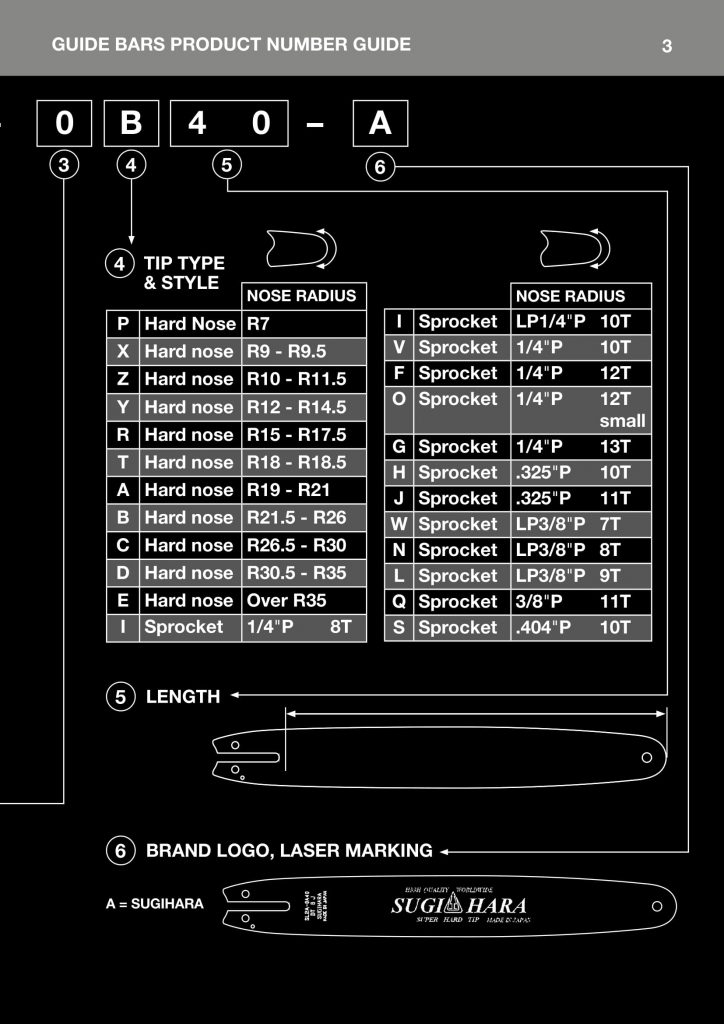

Cannon bar code (starts) S1
GB bar code (starts) SN
Oregon bar code (ends) D025
Stihl bar code (starts) 3003
Sugihara bar code (starts) ST2

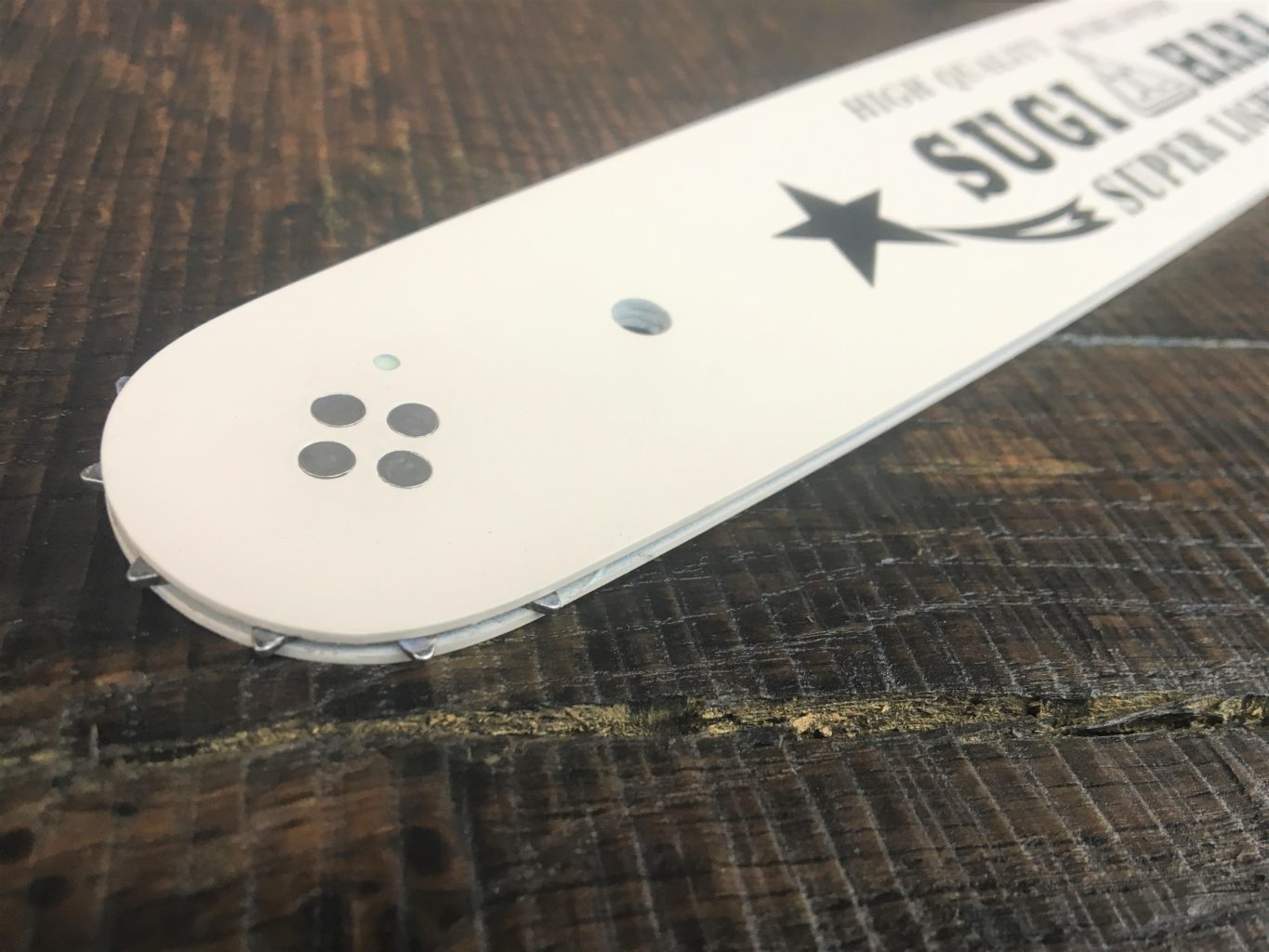

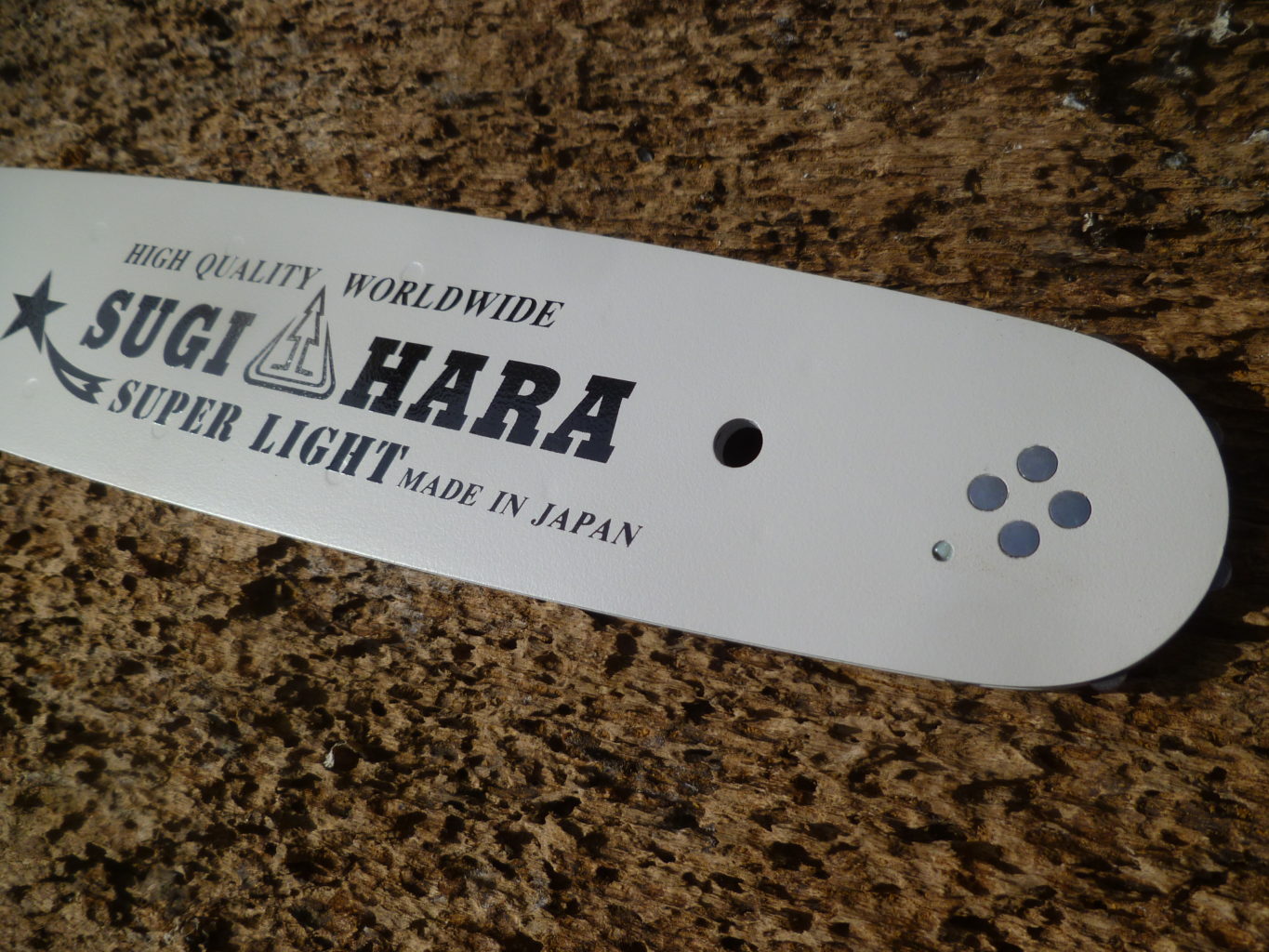

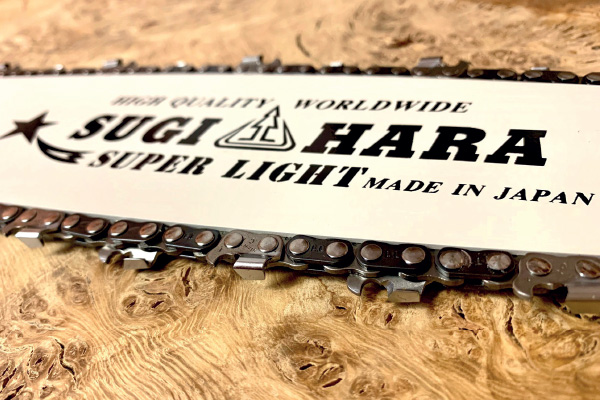

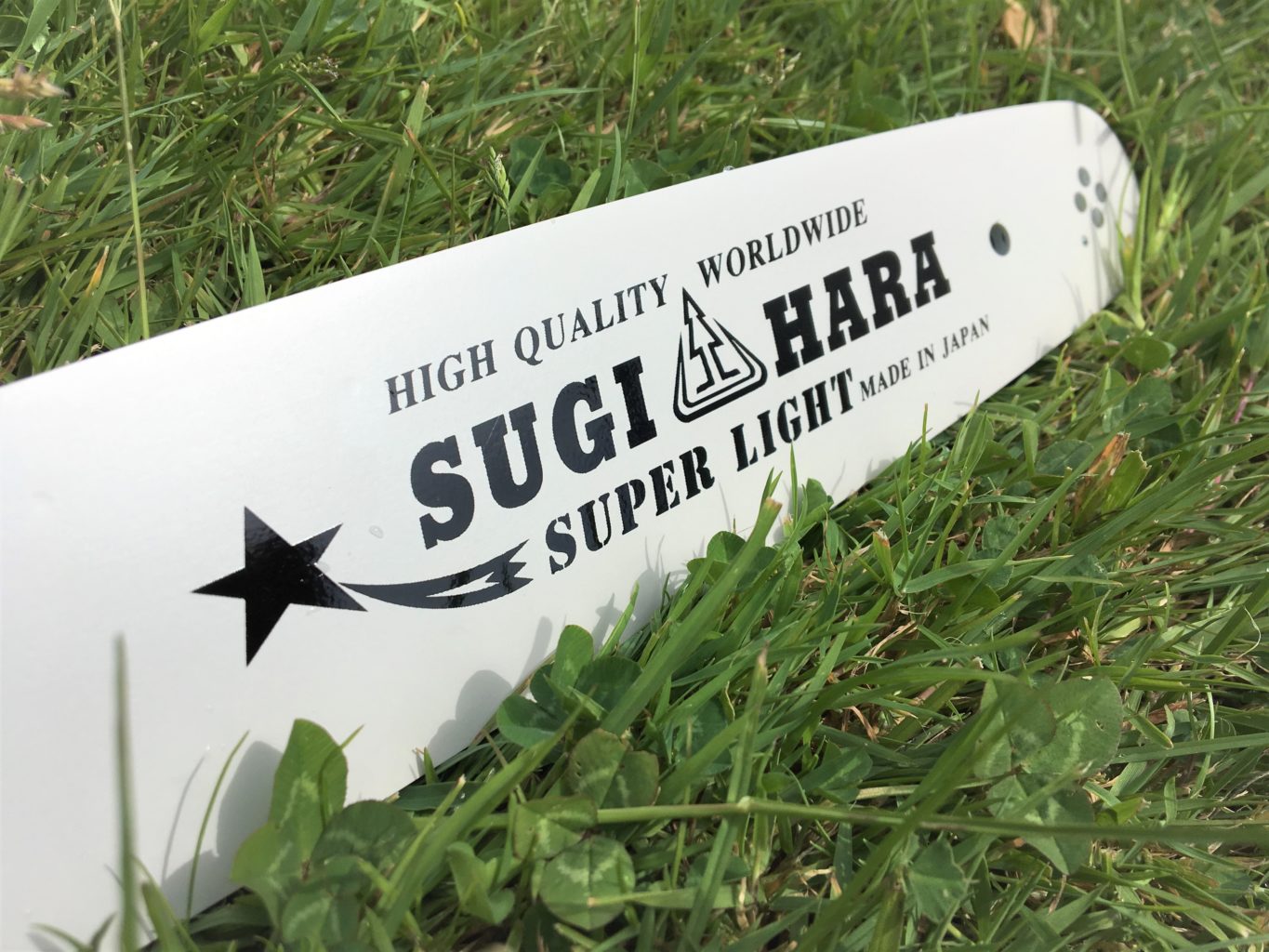

[S3-NS] ST2L-8J50-A [NON STANDARD 058 VERSION] Sugihara Pro Lam 20″[50cm] .325 .058[1.5mm] 81 drive links

$78.28

Add to
Stock 38
Part Number ST2L-8J50-A
Weight 1110g
Part Number ST2L-8J50-A Categories: ,
Durability
Stiffness
Cut speed

Unusual Stihl  bar that runs .325 .058 [ie basically what Husky saws runs].

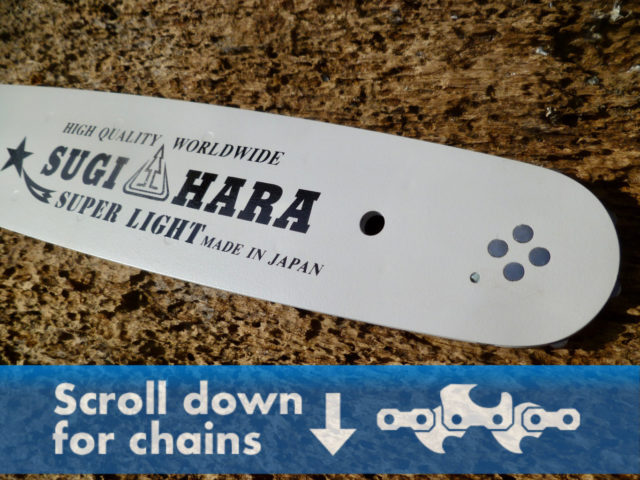

To find chains that fit this bar please keep scrolling down the page…

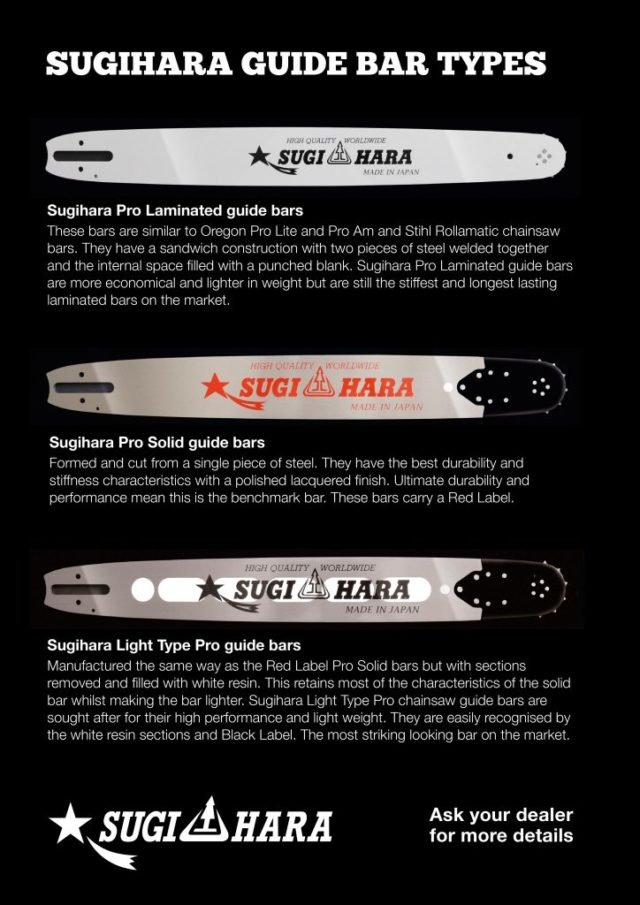

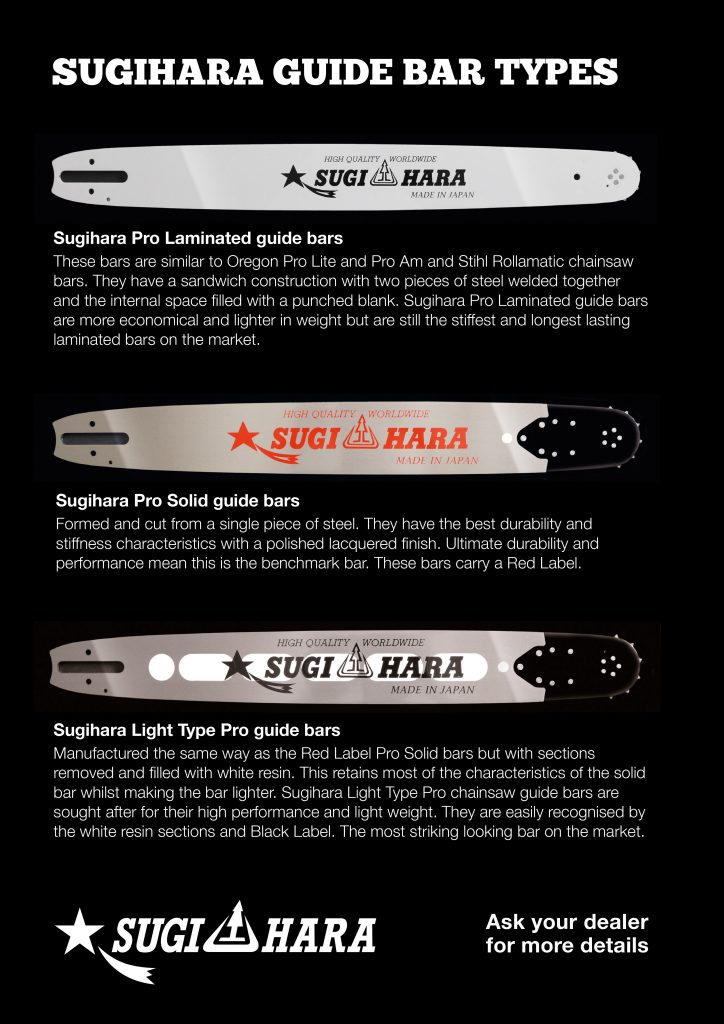

There are 3 types of Sugihara Guidebar – Pro Laminated, Pro Solid and Light Type pro. Have a look at the second picture above in the gallery to see how these bars differ.

What makes a Sugihara bar so good? This is a difficult question to summarise easily.

Sugihara bars started manufacturing chainsaw bars in 1967 by Hideo Sugihara. Japan has always had a reputation for excellence forging and working steel. Having the knowledge to manufacture quality chainsaw bars is not something that is gained overnight. It is a complex process of which cutting out the initial bar is only one part.


Steel has different properties dependant on how it is heated then cooled. Sugihara bars may go through the process of heating and cooling up to 4 times on different parts of the bar in order to gain maximum performance. The rails need to be accurately cut and hardened but over hardening can make them brittle. The bar body needs to be stiff yet flexible. We have used a number of different chainsaw bars over the years including all the major manufactures. Sugihara bars are the hardest wearing bars out there. Even their laminated bars will outlast rivals.

On the single piece pro and light type bars the hardness of the rails is measured at HRC 60. Compare this to Stihl at HRC 57 and Oregon at HRC 55 and it is clear why these bars last longer. They are so hard they resist most flat files when it comes to bar dressing (we recommend a diamond dressing knife which can be found here).


However bear in mind they are more ‘thoroughbred’ in that if they are mistreated and the bar gets over heated they are more prone to chipping. In the wrong hands these bars have a far shorter lifespan so please be aware of your bar maintenance:

  1. Check your drive rim/drive sprocket BEFORE you buy a new bar – if worn you MUST change this before running a brand new high tolerance bar

  2. Old chains [yes if they have a been used ‘a few’ times this counts as old – must NOT be run on a new bar [or you can but you will likely wear the bar much faster]. If in doubt do not do it.

  3. DO bed in your new bar and allow all the different parts to begin the bedding in process








Additional information

Weight 1110 g

Chains that match

  • 3 pack Granberg filing stones 4.8mm(3/16")

    3x Stones Pack Granberg filing stones 4.8mm[3/16″] – Grinds .325 Chains

    Part Number G418-3
    $12.92
    Add to
  • 4.5mm[11/64″] Diamond Coarse – Sharpens .325 Chains [Old Style]

    Part Number DS G1164CHPC
    $31.31
    Add to
  • 4.5mm[11/64″] Diamond Fine – Sharpens .325 Chains [Old Style]

    Part Number DS G1164CHPF
    $31.31
    Add to
  • 4.8mm[3/16″] Diamond Coarse – Sharpens .325 Chains [Old Style]

    Part Number DS G316CHPC
    $31.31
    Add to
  • 4.8mm[3/16″] Diamond Fine – Sharpens .325 Chains [New Style]

    Part Number DS G316CHPF-ES
    $15.66
    Add to
  • 4.8mm[3/16″] Diamond Fine – Sharpens .325 Chains [Old Style]

    Part Number DS G316CHPF
    $31.31
    Add to
  • Oregon wooden file handle

    534370 Oregon Wooden File Handle

    Part Number 534370
    $4.31
    Add to
  • 56050071028 Stihl Filing Pouch with 4.8mm[3/16″] Sharpens .325 Chains

    Part Number 56050071028
    $52.45
    Add to
  • Stihl 2 in 1 easy file 4.8mm(3/16")

    56057504304 Stihl 2 In 1 Easy File 4.8mm[3/16″] Sharpens .325 Chains

    Part Number 56057504304
    $77.17
    Add to
  • Stihl file holder and file 4.8mm(3/16")

    56057504328 Stihl File Holder + File 4.8mm[3/16″] Sharpens .325 Chains

    Part Number 56057504328
    $17.57
    Add to
  • Stihl wooden file handle

    8114907860 Stihl Wooden File Handle

    Part Number 08114907860
    $4.42
    Add to
  • A4.8 4.8mm[3/16″] Carbide Sharpening Burr – Sharpens .325 Chains [Trial price]

    Part Number A4.8
    Original price was: $23.49.Current price is: $11.74. Out of Stock
  • LC10081-316 Vallorbe File Holder + File 4.8mm[3/16″] Sharpens .325 Chains

    Part Number LC10081-316
    $19.49
    Add to
  • Oregon 4.5mm[11/64″] Chainsaw Files x12 – Files .325 Chains

    Part Number 70511
    $38.75
    Add to
  • Oregon 4.8mm[3/16″] Chainsaw Files x12 – Files .325 Chains

    Part Number 70503
    $28.38
    Add to
  • oregon-file-holder-and-file-cb

    Oregon File Holder and File 4.5mm[11/64″] – Files .325 Chains

    Part Number Q29192C
    $17.22
    Add to
  • oregon-file-holder-and-file-cb

    Oregon File Holder and File 4.8mm[3/16″] – Files .325 Chains

    Part Number Q18228C
    $17.22
    Add to
  • Oregon Pouch with 4.5mm[11/64″] – Files .325 Chains

    Part Number 558549
    $29.26
    Add to
  • Oregon Pouch with 4.8mm[3/16″] – Files .325 Chains

    Part Number 558550
    $29.26
    Add to
  • Panther Diamond 4.8mm[3/16″] Chainsaw File x1 – Files .325 Chains

    Part Number 48MM-316-DIA
    $11.74
    Add to
  • LC10003-03-1164 Vallorbe 4.5mm(11/64") Chainsaw Files x12

    Vallorbe 4.5mm[11/64″] Chainsaw Files x12 – Files .325 Chains

    Part Number LC10003-03-45
    Original price was: $38.75.Current price is: $27.01.
    Add to
  • Vallorbe 4.8mm[3/16″] Chainsaw Files Twin Pack – Files .325 Chains

    Part Number LC10002-316
    $8.61
    Add to
  • LC10003-03-1164 Vallorbe 4.5mm(11/64") Chainsaw Files x12

    Vallorbe 4.8mm[3/16″] Chainsaw Files x12 – Files .325 Chains

    Part Number LC10000-03-316
    $38.75
    Add to
  • Vallorbe plastic file handle with file angles

    Vallorbe Plastic File Handle with File Angles

    Part Number AL240
    $6.46
    Add to
Please email or call us +44 (0)1590 681259 for sprockets for this chainsaw
