scroll down for chains files accessories


Fits the following chainsaws:

STIHL [1/4 drive sprocket needs to be fitted]

009, 010, 011, 012, 017, MS170, MS171, 018, MS180, MS181, 019, MS190, MS191, MS192, MS193, 020, MS200, MS201, 021, 022, MS210, MS211
019T, MS190T, MS191T, MS192T, MS193T, 020T, MS200T, MS201T
HT70, HT75, HT100, HT101, HT130, HT131
E140, E160, E180, MSE140, MSE160, MSE180, MSE200

Cannon bar code (starts) S5
GB bar code (starts) SW12
Oregon bar code (ends) A074
Stihl bar code (starts) 3005
Sugihara bar code (starts) SL2

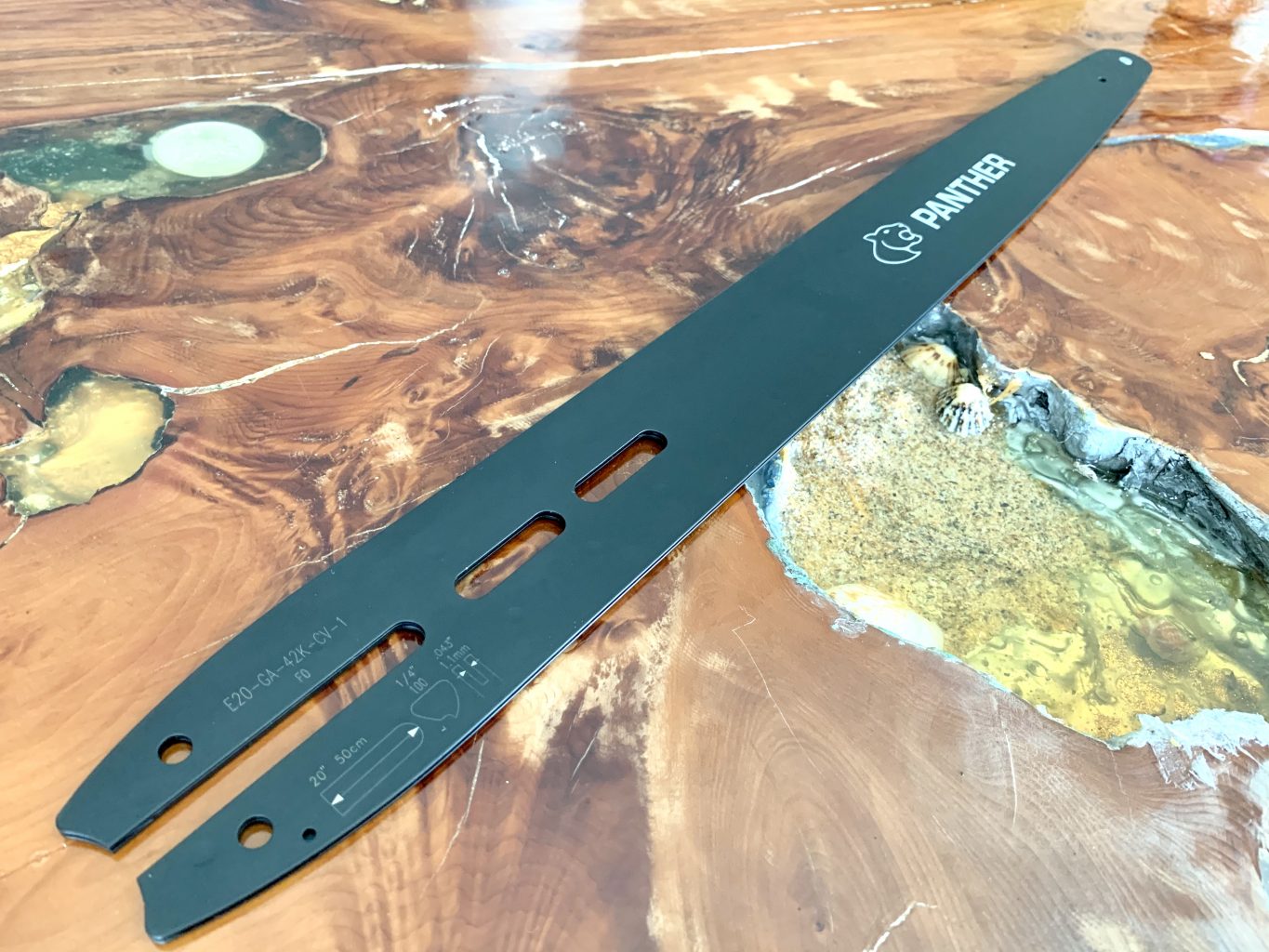

[BAR]20″[50cm] Panther Mini Stihl 1/4 .043 100 drive links [Apologies revised ETA 10th June 2023 – Check 18″ Panther Mini Bars for Stihl Available Expected 16th April 2023]

$96.87

Out of Stock

Enter email and click JOIN WAITLIST to be notified when back in stock

Part Number E20-GA-42K-CV-1
Weight 313g
Part Number E20-GA-42K-CV-1 Categories: , ,
Durability
Stiffness
Cut speed

MUST HAVE 1/4 SPROCKET FITTED. Panther Mini bars were specifically designed to run the game changing 1/4 .043 picco chain originally made by Stihl. Not only do they come in 8″/10″/12″/14″ for the Stihl MS150T, MS151T, MS150C-E, MS151C-E [others if 1/4 drive sprocket fitted]. 16″/18″/20″ that will fit all Stihl Group 1 saws. They also come in 8″/10″/12″/14″ for the Husqvarna T525, 535i XP, T535i XP, 536Li XP, T536Li XP, T540i. 16″/18″/20″ will fit all Husky Group 1 saws and 8″/10″/12″/14″ for Echo CS-2511WES and CS-2511TES as well as 16″/18″/20″ that will fit Echo Group 1 saws. Make sure your saw is fitted with a 1/4 drive sprocket. No one else currently has the range of bars for the smallest lightest saws in the world as the Panther Brand. No one.


The original 1/4 .043 picco chain was the Stihl 3670-71PM3 and this chain was ground breaking in it being the smoothest, thinnest and cleanest cutting chain on the market. There are now variations on this chain from other suppliers and all give the smoothest and most controlled cut you can get with a chainsaw. Panther mini bars with Panther mini chain allow you to take full advantage of this technology on the widest range of bars to be found anywhere.



For Husky 535i, T535i, 536Li, T536i, 540i, T540i 1/4 sprocket click here

For Echo CS-2511WES, Echo CS-2511TES 1/4 sprocket click here

For Echo DCS-2500T, DCS-2500 1/4 sprocket click here



Additional information

Weight 313 g

Customer Reviews

Based on 3 reviews
67%
(2)
0%
(0)
0%
(0)
33%
(1)
0%
(0)
T
Timothy Pettigrew
Excellent Milling Bar for my Electric Chainsaw

I purchased this 20 " Panther bar in December 2020 to fit my Oregon CS1500 (15 amp, 2,400W) corded electric chainsaw. The default 18" long bar on this saw has a gauge of 1.3mm, so the thinner 1.1mm gauge of the Panther bar enables the additional 2" length bar to be used. A 1/4" sprocket is available for the CS1500 and the bar fits the saw well.

I use the Panther bar / CS1500 combination in a portable ("Alaskan") type chainsaw mill with boles up to a maximum capacity of 16" (40.5cm) diameter with lengths up to 30" (76.5cm) of locally sourced timbers such as apple, ash, horse chestnut and oak. I have used both Panther mini chain and Stihl Micro (PM3) chain fitted to this bar with equally good results, producing incredibly smooth cuts.

The milled wood is used for creating wood-turning blanks both for personal and turning club use. It is now February 2023 and the bar is still in good condition and usable after over 2 years of use. I am hoping to purchase a back-up bar when they are eventually back in stock. As far as I'm aware there is no other bar of comparable 20" length which will fit the CS1500.

There is a You Tube video showing this milling set-up at https://youtu.be/WXqlnQlT7Ig

A
A.R.
Not long lasting

You really can't expect them to last any longer than about three months

A
Andrew Rood
It Works

And actually worked pretty well here is a YouTube video.

https://youtu.be/gqJwZFuoCKo
