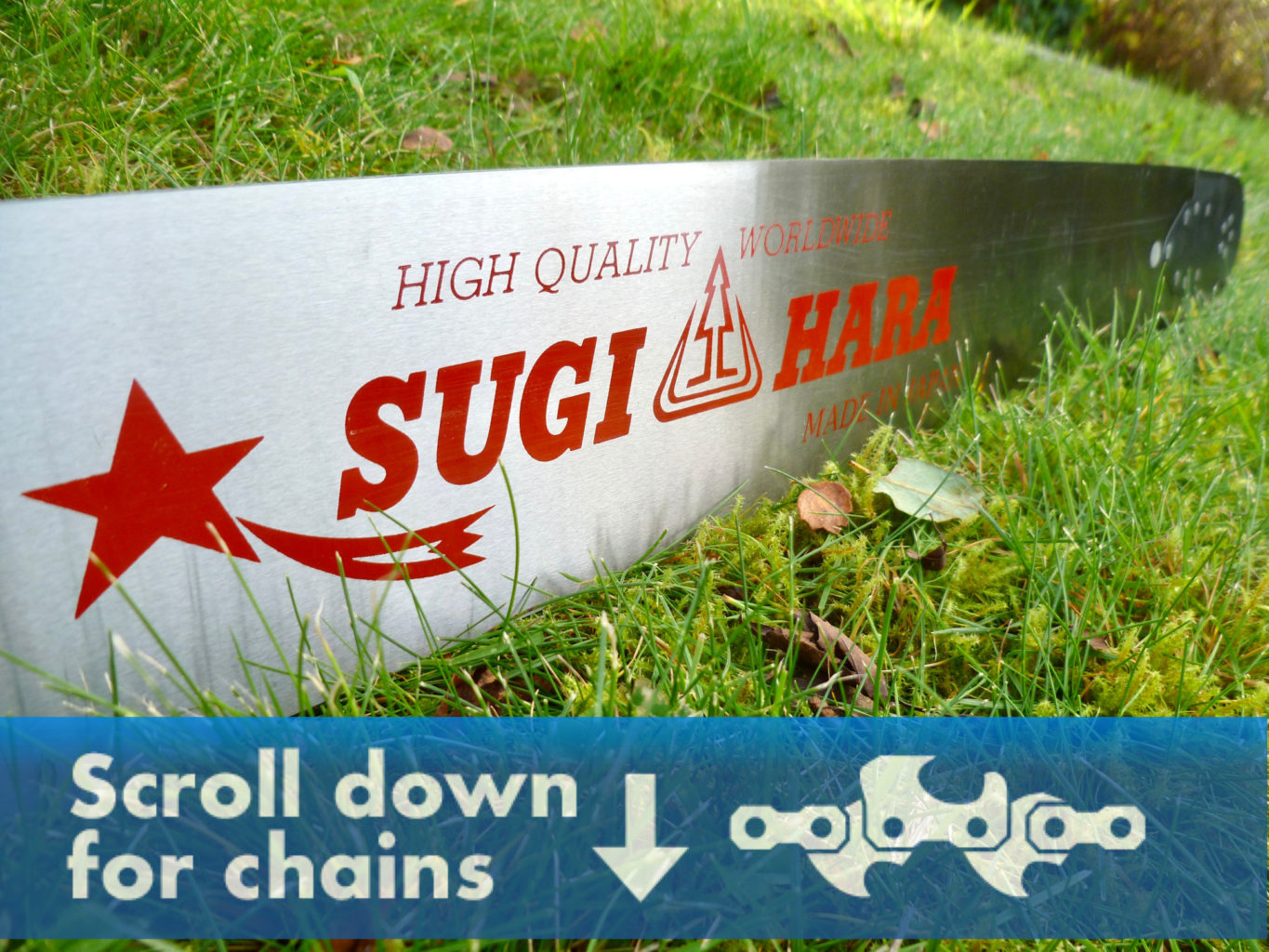

[H3-NS] VH2T-8Q45-A [NON STANDARD 3/8 VERSION] Sugihara 18″[45cm] Pro Solid – 3/8 .058[1.5mm] 68 drive links

$132.37

Add to
Stock 16
Part Number VH2T-8Q45-A
Weight 1125g
Part Number VH2T-8Q45-A Categories: ,

To find chains that fit this bar please keep scrolling down the page…

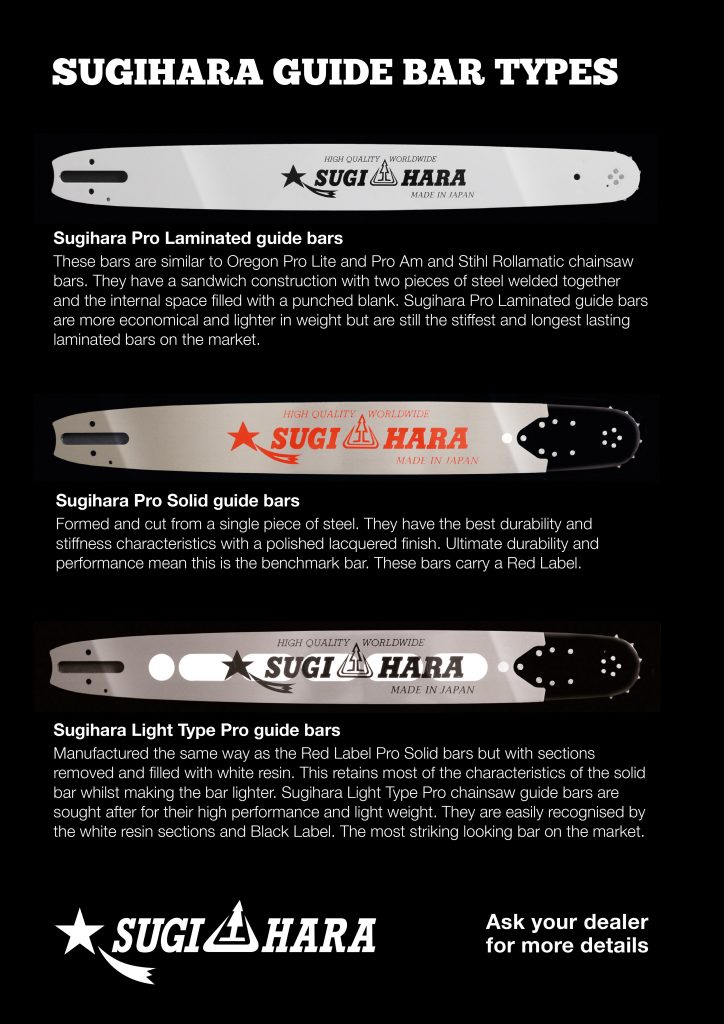

There are 3 types of Sugihara Guidebar – Pro Laminated, Pro Solid and Light Type pro. Have a look at the second picture above in the gallery to see how these bars differ.

What makes a Sugihara bar so good? This is a difficult question to summarise easily.

Sugihara bars started manufacturing chainsaw bars in 1967 by Hideo Sugihara. Japan has always had a reputation for excellence forging and working steel. Having the knowledge to manufacture quality chainsaw bars is not something that is gained overnight. It is a complex process of which cutting out the initial bar is only one part.


Steel has different properties dependant on how it is heated then cooled. Sugihara bars may go through the process of heating and cooling up to 4 times on different parts of the bar in order to gain maximum performance. The rails need to be accurately cut and hardened but over hardening can make them brittle. The bar body needs to be stiff yet flexible. We have used a number of different chainsaw bars over the years including all the major manufactures. Sugihara bars are the hardest wearing bars out there. Even their laminated bars will outlast rivals.

On the single piece pro and light type bars the hardness of the rails is measured at HRC 60. Compare this to Stihl at HRC 57 and Oregon at HRC 55 and it is clear why these bars last longer. They are so hard they resist most flat files when it comes to bar dressing (we recommend a diamond dressing knife which can be found here).


However bear in mind they are more ‘thoroughbred’ in that if they are mistreated and the bar gets over heated they are more prone to chipping. In the wrong hands these bars have a far shorter lifespan so please be aware of your bar maintenance:

  1. Check your drive rim/drive sprocket BEFORE you buy a new bar – if worn you MUST change this before running a brand new high tolerance bar

  2. Old chains [yes if they have a been used ‘a few’ times this counts as old – must NOT be run on a new bar [or you can but you will likely wear the bar much faster]. If in doubt do not do it.

  3. DO bed in your new bar and allow all the different parts to begin the bedding in process








Additional information

Weight 1125 g

Chains that match

  • 00007504300 Stihl 2 In 1 Easy File 5.5mm[7/32"] Sharpens .404 Chains

    00007504300 Stihl 2 In 1 Easy File 5.5mm[7/32″] Sharpens .404 Chains

    Part Number 00007504300
    $76.76 Out of Stock
  • 3 pack Granberg filing stones 5.5mm(7/32")

    3x Stones Pack Granberg filing stones 5.5mm[7/32″] – Grinds .404 and 3/8 Chains

    Part Number G419-3
    $12.85
    Add to
  • 5.2mm[13/64″] Diamond Coarse – Sharpens 3/8 Chains [New Style]

    Part Number DS G1364CHPC-ES
    $15.57
    Add to
  • 5.2mm[13/64″] Diamond Coarse – Sharpens 3/8 Chains [Old Style]

    Part Number DS G1364CHPC
    $31.15
    Add to
  • 5.2mm[13/64″] Diamond Fine – Sharpens 3/8 Chains [Old Style]

    Part Number DS G1364CHPF
    $31.15
    Add to
  • 5.5mm[7/32″] Diamond Coarse – Sharpens .404 and 3/8 Chains [New Style]

    Part Number DS G732CHPC-ES
    $15.57 Out of Stock
  • 5.5mm[7/32″] Diamond Fine – Sharpens .404 and 3/8 Chains [New Style]

    Part Number DS G732CHPF-ES
    $15.57 Out of Stock
  • Oregon wooden file handle

    534370 Oregon Wooden File Handle

    Part Number 534370
    $4.28
    Add to
  • 56050071029 Stihl Filing Pouch with 5.2mm[11/64″] Sharpens 3/8 Chains

    Part Number 56050071029
    $52.17
    Add to
  • Stihl 2 in 1 easy file 5.2mm

    56057504305 Stihl 2 In 1 Easy File 5.2mm[13/64″] Sharpens 3/8 Chains

    Part Number 56057504305
    $76.76 Out of Stock
  • Stihl file holder and file 5.2mm

    56057504329 Stihl File Holder + File 5.2mm[13/64″] Sharpens 3/8 Chains

    Part Number 56057504329
    $17.42
    Add to
  • 56070071000 Stihl HEXA ONLY Filing Pouch Sharpens 3/8 HEXA Chains

    Part Number 56070071000
    $65.80
    Add to
  • 601981 Oregon Chainsaw Tool Kit Complete

    Part Number 601981
    $58.30
    Add to
  • Stihl wooden file handle

    8114907860 Stihl Wooden File Handle

    Part Number 08114907860
    $4.40
    Add to
  • A5.5 5.5mm[7/32″] Carbide Sharpening Burr – Sharpens .404 and 3/8 Chains [Trial price]

    Part Number A5.5
    Original price was: $23.36.Current price is: $11.68. Out of Stock
  • Oregon file holder and file 5.5mm(7/32")

    Oregon File Holder and File 5.5mm[7/32″] – Files .404 and 3/8 Chains

    Part Number Q13252C
    $17.13
    Add to
  • Vallorbe 5.2mm (13/64") chainsaw file

    Vallorbe 5.2mm[13/64″] Chainsaw Files x12 – 3/8 Chains

    Part Number LC10000-03-1364
    $38.54
    Add to
  • Vallorbe plastic file handle with file angles

    Vallorbe Plastic File Handle with File Angles

    Part Number AL240
    $6.42
    Add to
Please email or call us +44 (0)1590 681259 for sprockets for this chainsaw
