If you are looking to getting into chainsaw carving please read this post on arbtalk here.



Chainsaw carving is NOT like standard chainsaw use – ie. you can’t simply strap on a carving bar and do carving – we broke our first carving bar and shortly after broke the chainsaw… please learn by our mistakes! We did not follow the below..



  1. Chain is SLACK – no where near as tight as a standard bar, it should be hanging off the underside of the bar

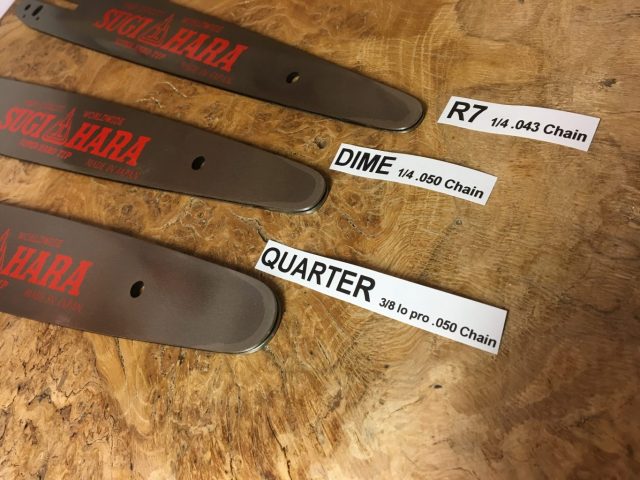

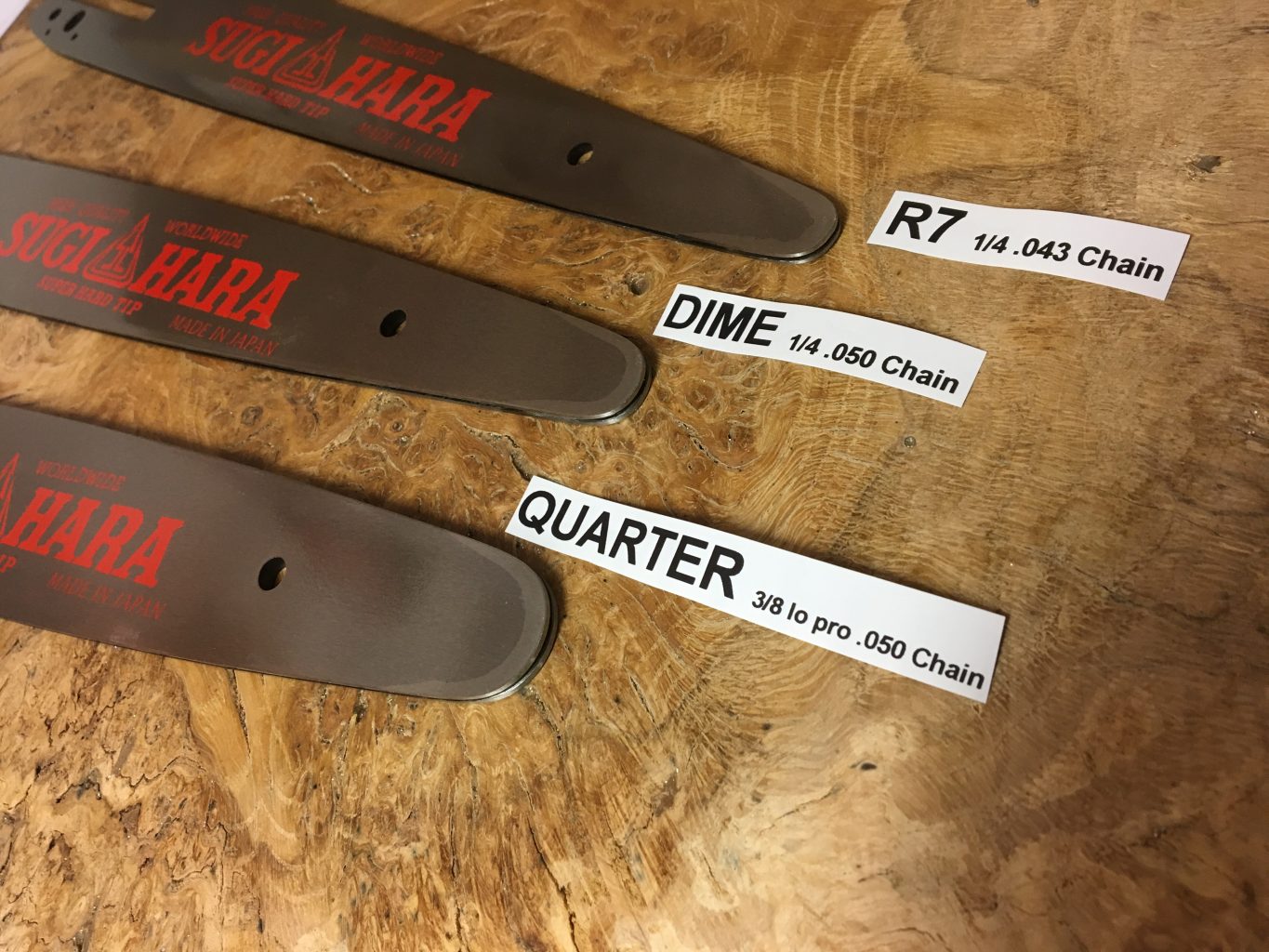

  2. R7 bars running 1/4 .043 are SUPER delicate and only used for very fine detail work
  3. Carving is mainly done with the saw at half throttle [or thereabouts] – very different from standard work where most cuts are with full throttle
  4. Carving bars take longer to bed in – run them gently and ensure they don’t get hot for the first couple of tanks [which means carve for a minute – rest a minute – carve for a minute = rest for a minute… ]

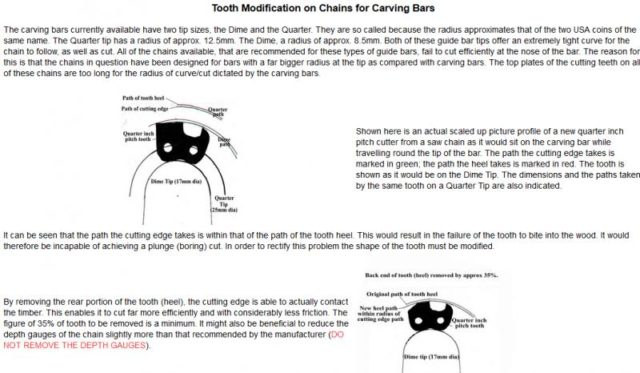

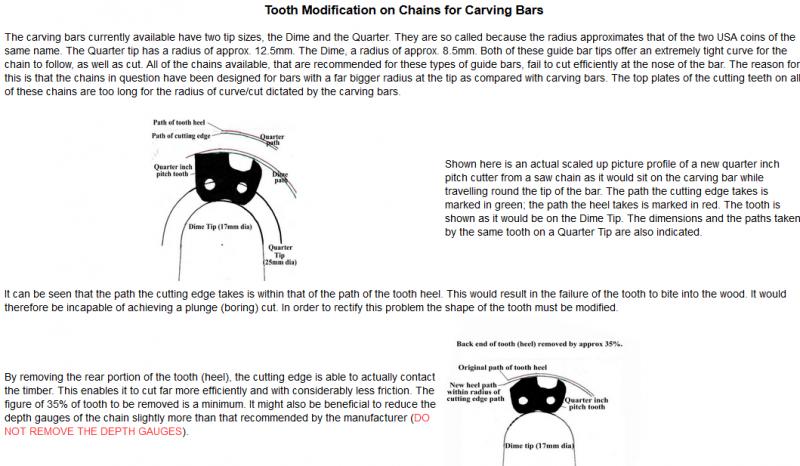

  5. Take the heels of the cutter teeth to reduce friction [Stihl 3661-13RMS already has this feature] but click here to see more on this.







You want more info on carving? Then have a look at these pages here… But grab a cuppa and do this when you have time – Carving like chainsaw milling is an art, a skill and you will not simply be able to spend 20 minutes to buy your bits then get cracking [or you can but you will break something at some point..]

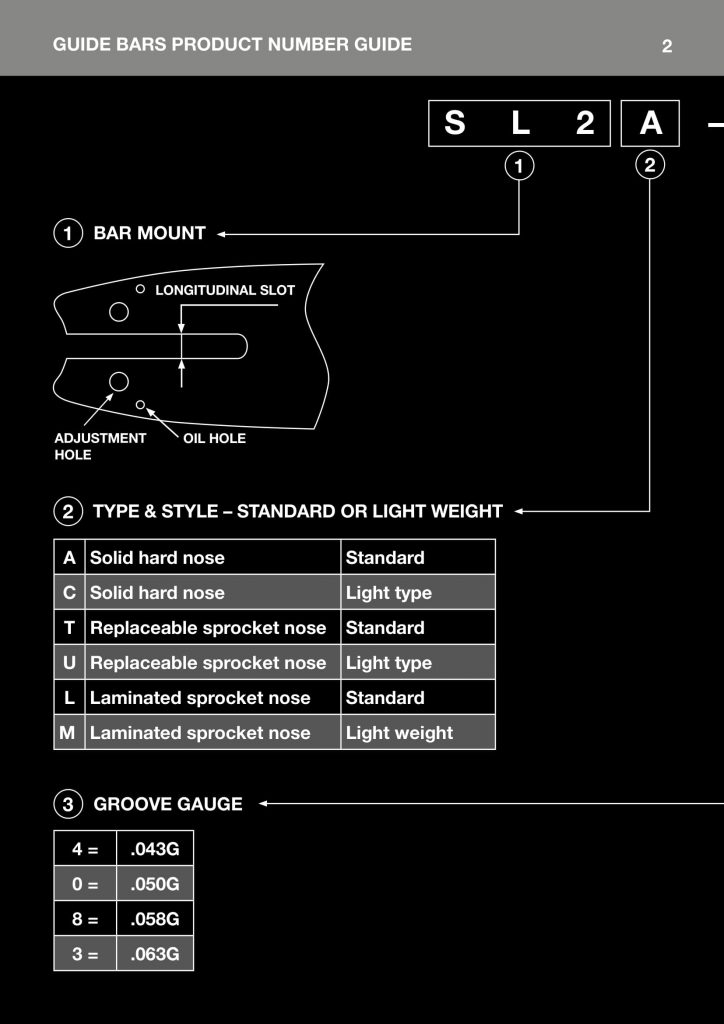

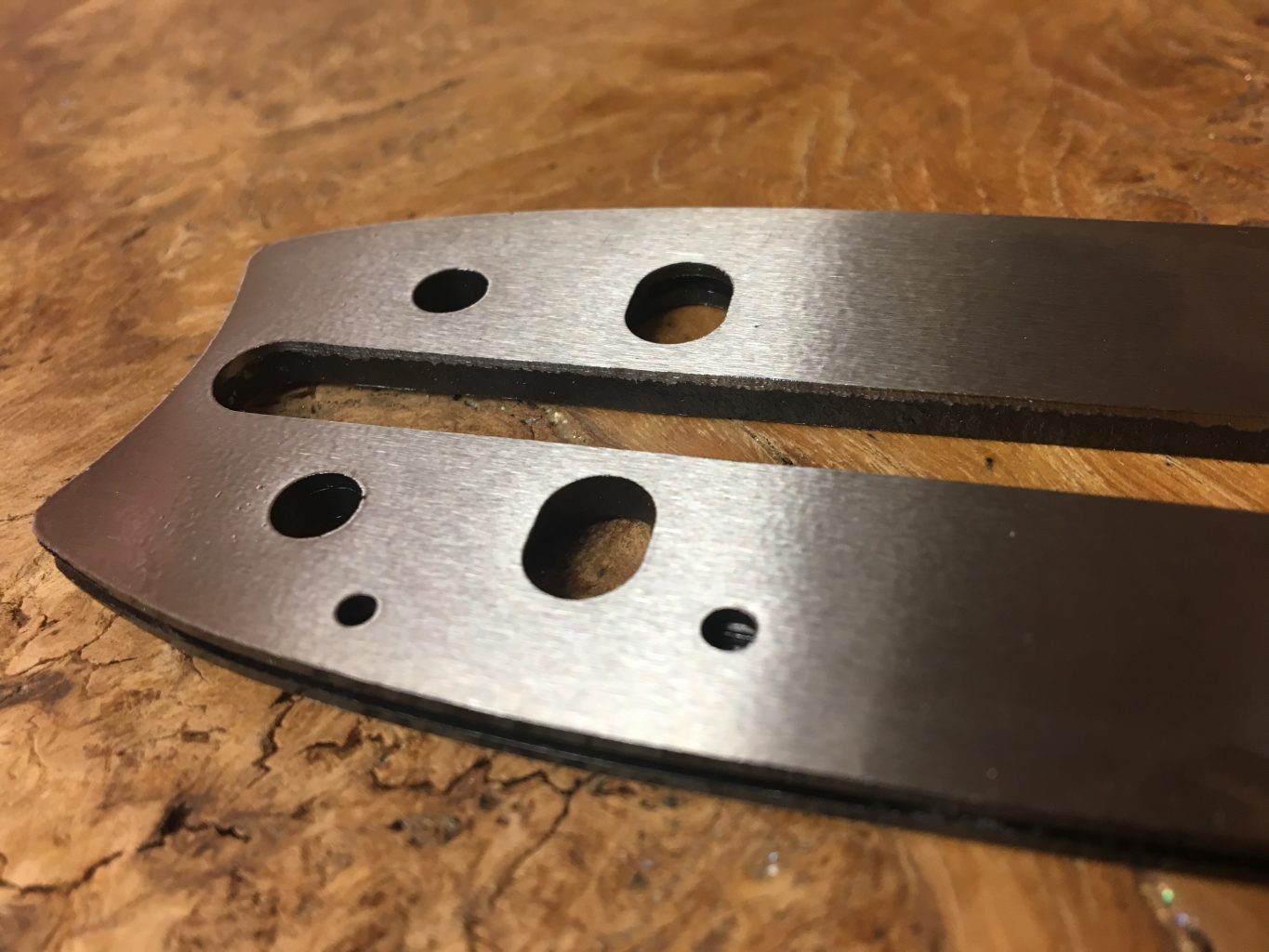

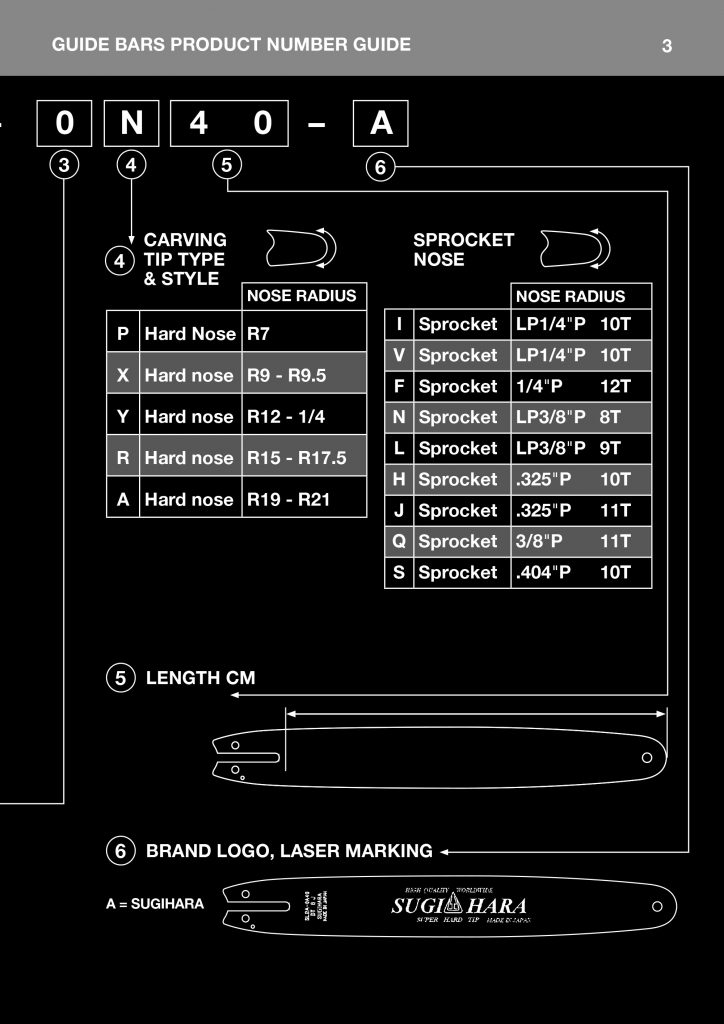

If the bar is Sugihara and starts BN6 [for Cannon it is C1] this is a UNIVERSAL mount and will fit most small saws under 40cc.

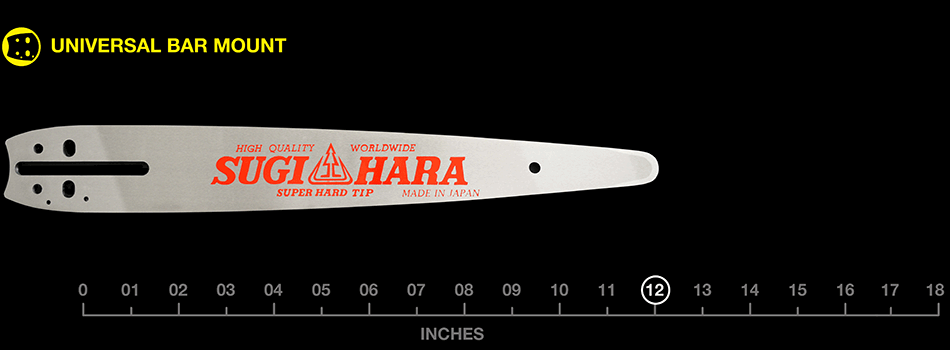

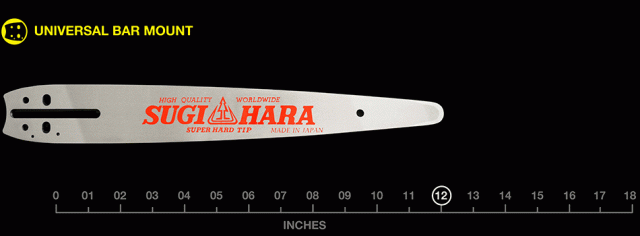

[U1-12] BN6A-0X30T-A-MS181-KIT Sugihara Tough Carver Dime Tip Kit 12″[30cm] 1/4 .050[1.3mm] 68 drive links [Stihl 017, 018, 021, 023, 025, MS170, MS171, MS180, MS181, MS190T, MS191T, MS211, MS230, MS231, MS241, MS250, MS251]

$219.83

Out of Stock

Enter email and click JOIN WAITLIST to be notified when back in stock

Part Number BN6A-0X30T-A-MS181-KIT
Weight 435g
Part Number BN6A-0X30T-A-MS181-KIT Categories: ,
Durability
Stiffness
Cut speed

What do I get?

  • BN6A-0X30T-A Sugihara Tough Carver Dime Tip 12″[30cm] 1/4 .050[1.3mm] 68 drive links
  • 3661-13RMS Stihl Carving Micro Chisel 1/4 .050[1.3mm]
  • (P-1/4-050-SC) Panther Semi Chisel 1/4 .050[1.3mm]
  • S-544676 Carving Spur Sprocket 1/4 x8 tooth
  • Vallorbe 4.0mm[5/32″] Chainsaw Files Twin Pack – Files 3/8 Lo Pro and 1/4 Chains



New carving kits from Chainsawbars – save a £ or two and get everything you need to start carving!



Additional information

Weight 435 g

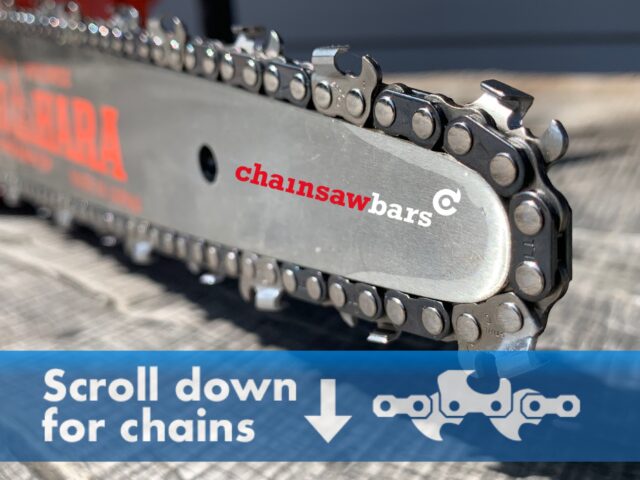

Chains that match
